| MOQ: | 1セット |
| 価格: | 900--1000 USD/set |
| standard packaging: | 必要 と なる 場合 |
| Delivery period: | 25 営業日 |
| Supply Capacity: | 月10セット |
Scope of application:
Medium hardness materials. For example, cement raw materials, clinker, construction sand, iron ore, sandstone, gypsum, coal gangue, coal and other materials.
Application areas:
Widely used in secondary or tertiary crushing in industries such as mineral processing, coal, building materials, chemical, refractory materials, etc.
Working principle:

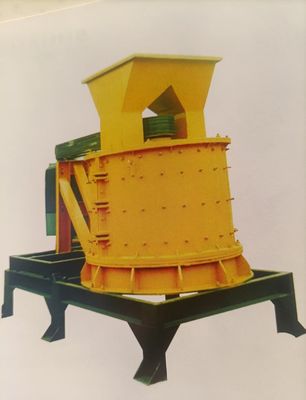

The vertical composite crusher is a fine crushing equipment developed by optimizing the main technical parameters based on similar crushing technologies at home and abroad. It has the advantages of impact crushing and hammer crushing.
Equipment features:
high crushing ratio, low energy consumption, smooth operation, simple structure, easy operation and maintenance. It is a new type of crushing equipment with multiple uses, high efficiency, and low cost.
Technical parameters:
| Model | Diameter | Capacity | Entrance granularity | Outlet granularity | Spindle speed | Motor Power | External dimensions |
| PFL-800 | 800mm | 10-20t/h | ＜100mm |
＜3-5mm 60-90% |
934 r/m | 30-45Kw | 2500x1100x1400 |
| PFL-1000 | 1000mm | 20-40t/h | ＜120mm |
＜3-5mm 60-90% |
769 r/m | 55Kw | 3100x1750x1640 |
| PFL-1250 | 1250mm | 40-70t/h | ＜150mm |
＜3-5mm 60-90% |
530 r/m | 90Kw |
3600x1700x1600 |
| PFL-1500 | 1500mm | 70-100t/h | ＜180mm |
＜3-5mm 60-90% |
495 r/m | 132Kw | 3880x2150x2115 |
| PFL-1750 | 1750mm | 90-130t/h | ＜200mm |
＜3-5mm 60-90% |
424 r/m | 160Kw | 4310x2157x2150 |
| PFL-2000 | 2000mm | 100-160t/h | ＜220mm |
＜3-5mm 60-90% |
370 r/m | 185Kw | 4593x2157x2200 |
|
|
| MOQ: | 1セット |
| 価格: | 900--1000 USD/set |
| standard packaging: | 必要 と なる 場合 |
| Delivery period: | 25 営業日 |
| Supply Capacity: | 月10セット |
Scope of application:
Medium hardness materials. For example, cement raw materials, clinker, construction sand, iron ore, sandstone, gypsum, coal gangue, coal and other materials.
Application areas:
Widely used in secondary or tertiary crushing in industries such as mineral processing, coal, building materials, chemical, refractory materials, etc.
Working principle:
The vertical composite crusher is a fine crushing equipment developed by optimizing the main technical parameters based on similar crushing technologies at home and abroad. It has the advantages of impact crushing and hammer crushing.
Equipment features:
high crushing ratio, low energy consumption, smooth operation, simple structure, easy operation and maintenance. It is a new type of crushing equipment with multiple uses, high efficiency, and low cost.
Technical parameters:
| Model | Diameter | Capacity | Entrance granularity | Outlet granularity | Spindle speed | Motor Power | External dimensions |
| PFL-800 | 800mm | 10-20t/h | ＜100mm |
＜3-5mm 60-90% |
934 r/m | 30-45Kw | 2500x1100x1400 |
| PFL-1000 | 1000mm | 20-40t/h | ＜120mm |
＜3-5mm 60-90% |
769 r/m | 55Kw | 3100x1750x1640 |
| PFL-1250 | 1250mm | 40-70t/h | ＜150mm |
＜3-5mm 60-90% |
530 r/m | 90Kw |
3600x1700x1600 |
| PFL-1500 | 1500mm | 70-100t/h | ＜180mm |
＜3-5mm 60-90% |
495 r/m | 132Kw | 3880x2150x2115 |
| PFL-1750 | 1750mm | 90-130t/h | ＜200mm |
＜3-5mm 60-90% |
424 r/m | 160Kw | 4310x2157x2150 |
| PFL-2000 | 2000mm | 100-160t/h | ＜220mm |
＜3-5mm 60-90% |
370 r/m | 185Kw | 4593x2157x2200 |
